3-Inch Two-Piece Toilet Tank Repair Kit with Adjustable Fill Valve and Side-Mount Lever

3-Inch Two-Piece Toilet Tank Repair Kit with Adjustable Fill Valve and Side-Mount Lever

This coordinated repair set replaces the key operating, fastening and sealing components inside a compatible North American two-piece toilet tank. It combines a 3-inch outlet single-flush valve, a height-adjustable fill valve with a 15/16-14 NPSM bottom inlet, a side-mounted trip lever, stainless steel tank bolts and a tank-to-bowl sealing gasket—giving plumbing buyers and maintenance teams one practical package for matched replacement work.

  • رقم الصنف :

    T1115C+T0108FG2+T2402CP+T3139A+3T4225-03B
  • تكوين المرحاض :

    Two-piece
  • شهادة :

    CE, UPC, CUPC
  • ضمان :

    3-5 Years
  • الطلب (الحد الأدنى لكمية الطلب) :

    1000 set
  • ميناء الشحن :

    Xiamen
  • خدمة مخصصة :

    LOGO,Package,Color

    PRODUCT DESCRIPTION



Product Name: 3-Inch Two-Piece Toilet Tank Repair Kit with Adjustable Fill Valve and Side-Mount Lever



One Coordinated Tank Repair Set

Built as a two-piece toilet tank repair kit for North American replacement projects, this package consolidates the main components required to restore the filling, flushing, handle actuation and tank-to-bowl connection of a compatible toilet.

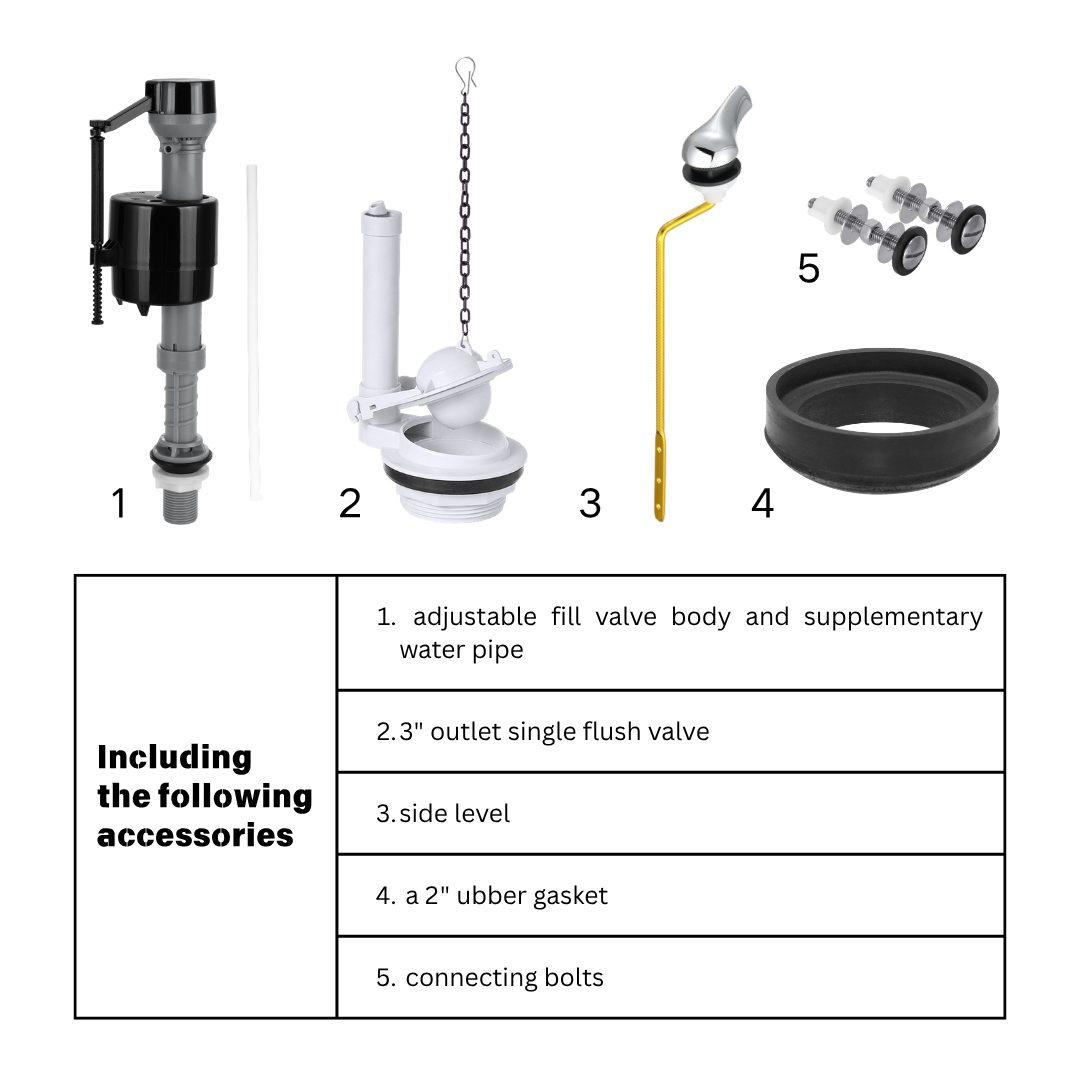

The kit includes:

  • Height-adjustable bottom-entry fill valve with refill tube

  • 15/16-14 NPSM fill-valve inlet thread

  • 3-inch outlet single-flush valve with overflow tube and chain

  • Side-mounted chrome-finish trip lever with multi-position metal arm

  • Two stainless steel tank-to-bowl connecting bolts with washers and nuts

  • Tank-to-bowl sealing gasket

3-Inch Single-Flush Valve

The 3-inch outlet configuration makes this a practical 3-inch flush valve toilet tank kit for residential repairs where the existing tank is designed for the same flush-valve outlet size.

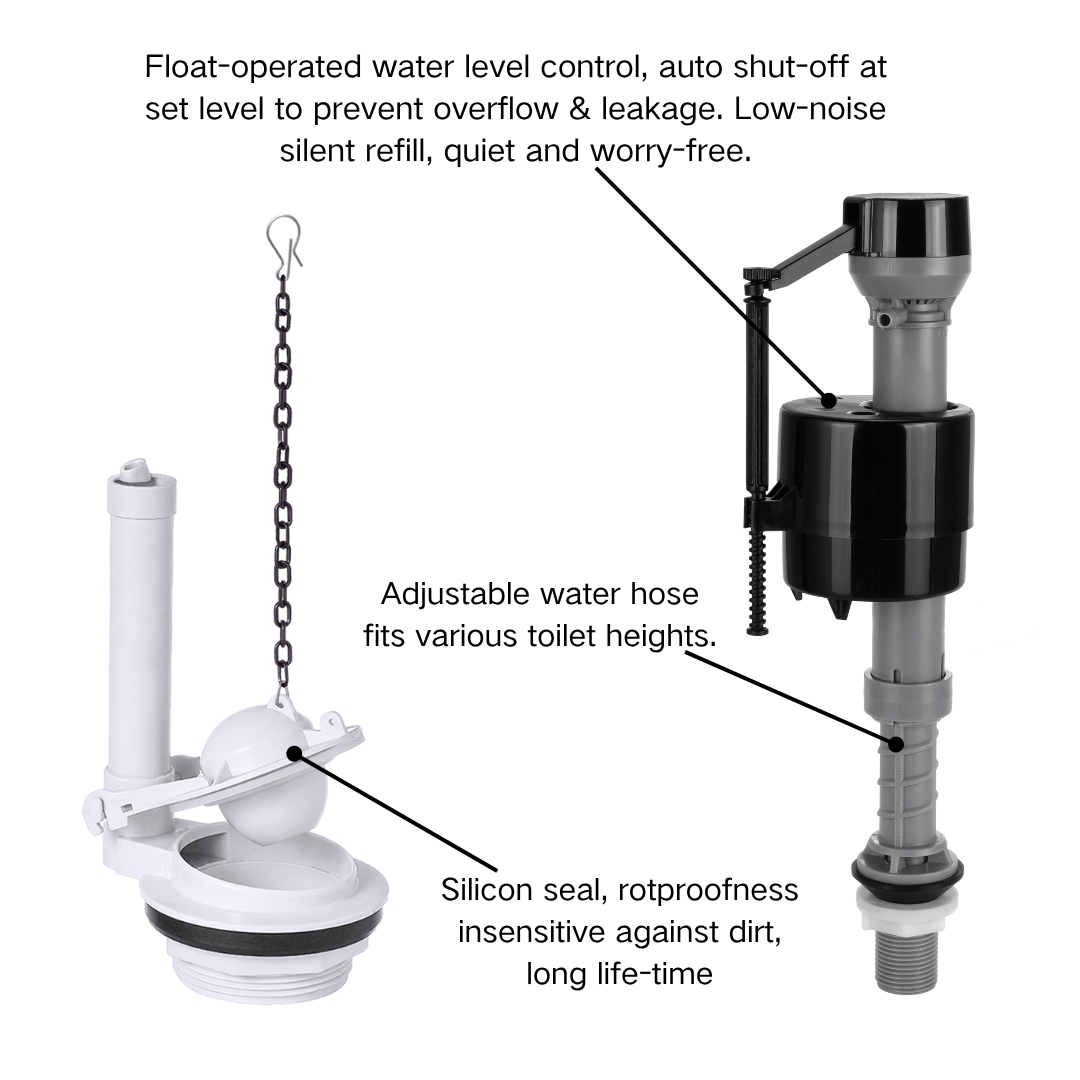

The flush valve uses a float-operated mechanism and includes an overflow tube, chain connection and sealing component. Supplying these parts together helps reduce the need to source individually matched tank components.

Adjustable Bottom-Entry Fill Valve

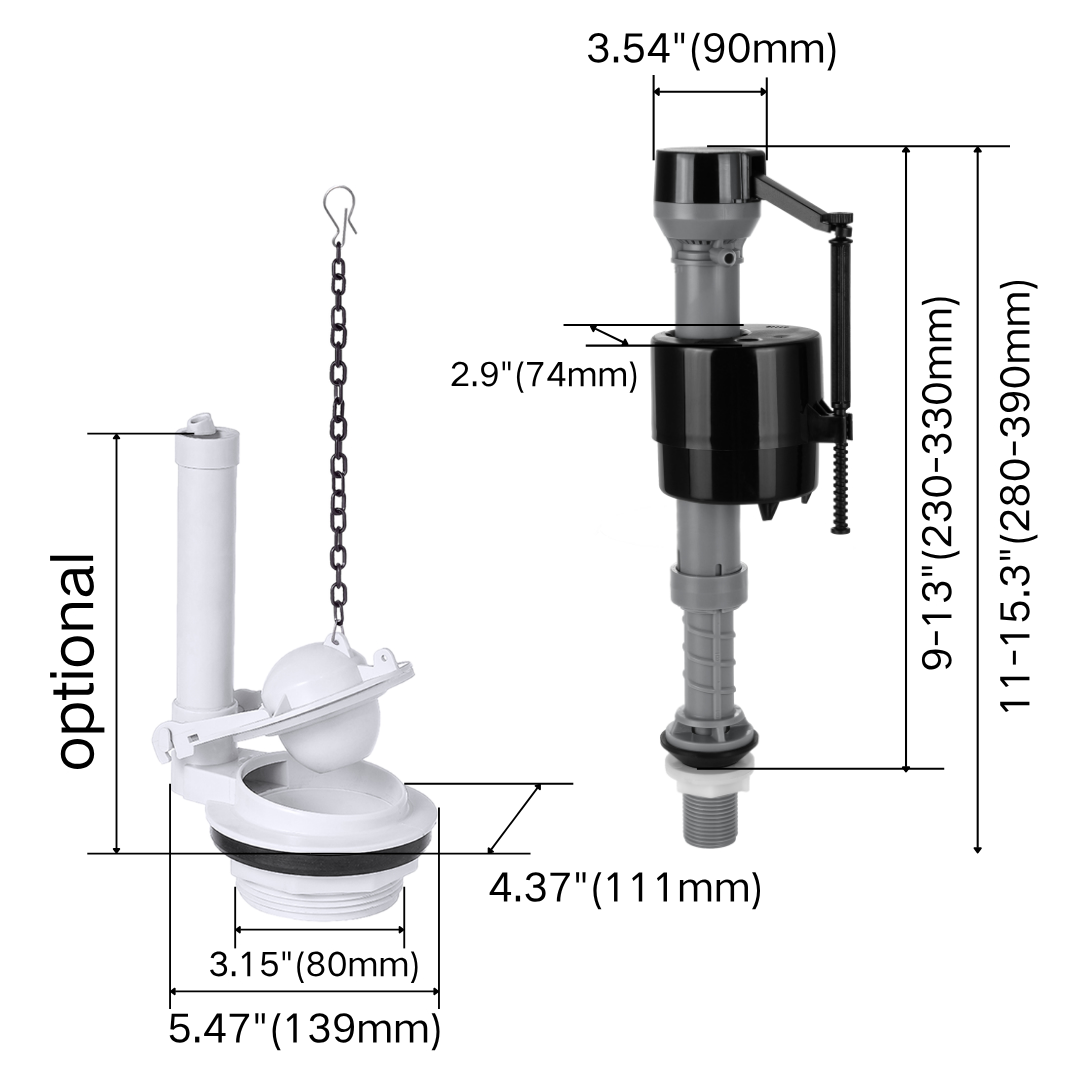

The supplied dimension drawing shows a 9–13 in (230–330 mm) adjustable body range and an 11–15.3 in (280–390 mm) overall height range. This makes it an adjustable fill valve kit for plumbing maintenance across compatible toilet-tank heights.

Its float-operated water-level control is designed to shut off the incoming water at the selected level. The bottom inlet uses a 15/16-14 NPSM thread specified for the North American market.

Side-Mounted Flush Handle

The included lever makes the package suitable as a side-mount toilet handle repair kit for two-piece tanks with a matching side lever opening.

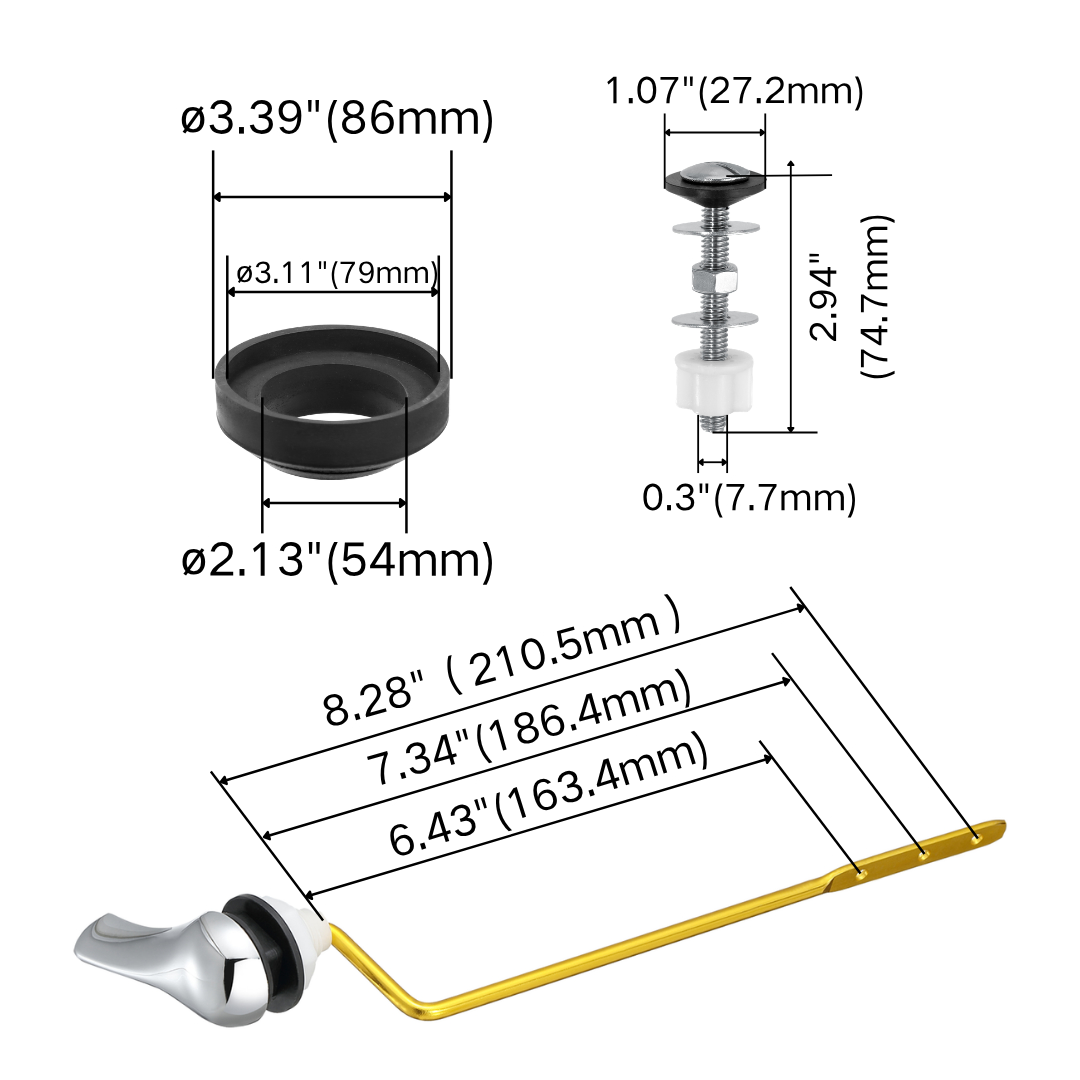

Its extended metal arm provides three chain connection positions. The supplied drawing shows approximate arm reference lengths of 6.43, 7.34 and 8.28 in, allowing the chain position to be selected according to the compatible tank layout.

Tank-to-Bowl Fastening and Sealing Parts

As a complete toilet tank replacement kit for plumbing distributors, the set includes both the tank-to-bowl gasket and two stainless steel connecting bolts. This helps buyers obtain the internal operating parts and the principal tank-fastening components in one coordinated package.

Before ordering, confirm:

  • A two-piece toilet construction

  • A 3-inch flush-valve outlet requirement

  • A side-mounted handle opening

  • A 15/16-14 NPSM bottom fill-valve connection

  • Sufficient internal clearance for the fill valve, flush valve and lever arm

This product should not be treated as universally compatible without checking the existing tank specifications.

B2B Supply and Packaging Information

For buyers sourcing a toilet tank repair kit for bulk commercial procurement, the supplied service sheet lists sample service, product color customization with a minimum order quantity of 3,000 pieces, and customizable multilingual user manuals.

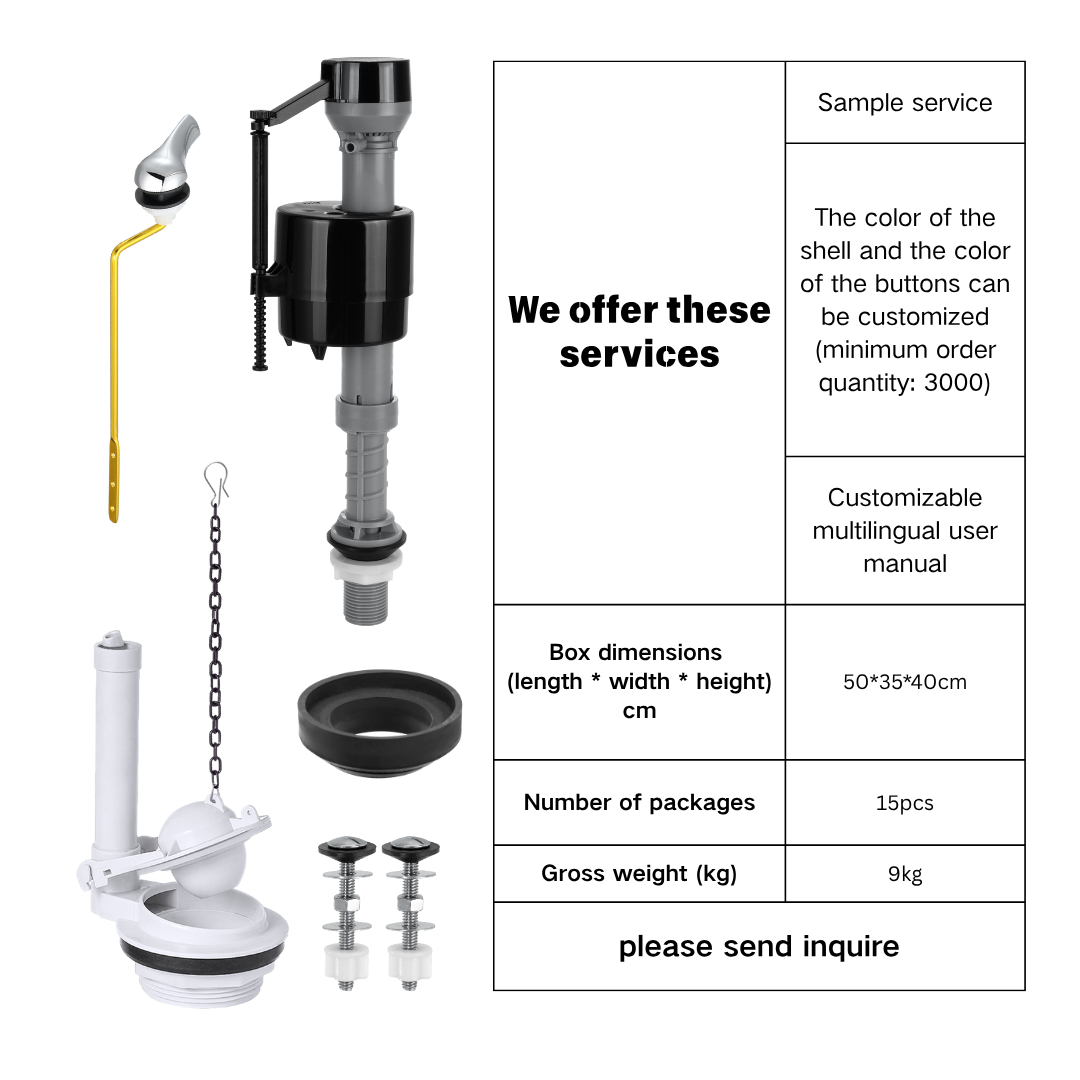

The packaging information shown is:

  • Carton dimensions: 50 × 35 × 40 cm

  • Carton quantity: 15 pcs

  • Gross carton weight: 9 kg

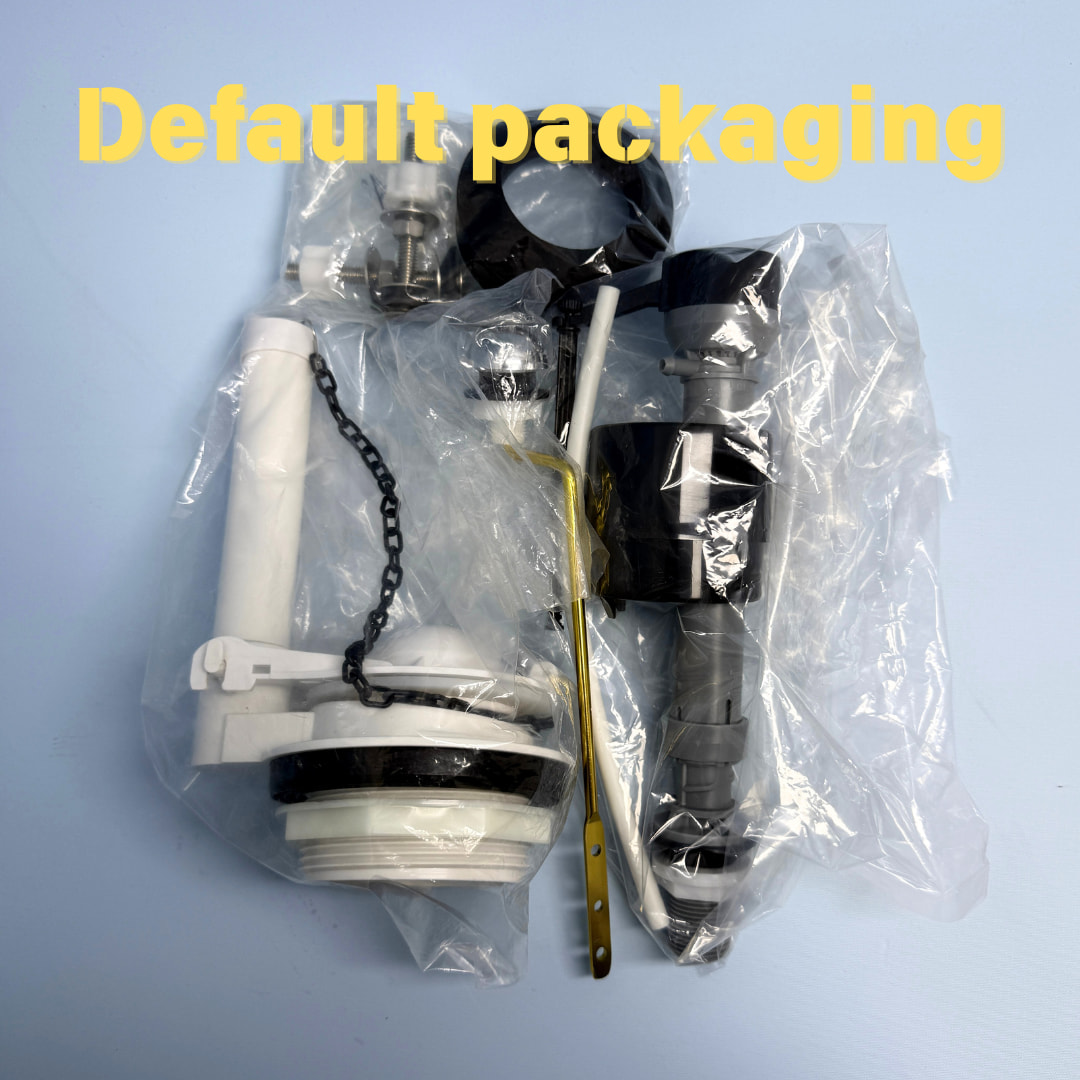

  • Default presentation: individual clear polybag packaging

Material: ABS, POM
Control: Side Mount
Delivery Time:

≤ 1000 pcs / 15 days

≤ 5000 pcs / 20 days

> 5000 pcs / negotiate

Sample Service Yes
Supply Ability 60000 pcs / month



    PRODUCT ADVANTAGES



1. Proven Performance Across Multiple Markets

Our product has been successfully sold in multiple countries and markets. Over the years, we have continuously iterated and upgraded it based on market feedback to address various challenges, such as high water temperatures, high water pressure, and poor water quality. Today, the product is highly mature and stable. Using our product to expand your business can effectively reduce customer complaints and improve customer satisfaction.



2. Comprehensive Customization Services

We offer customization options including LOGO printing, color selection, and packaging design. For example, we can print your logo on the product surface, apply your exclusive colors to the float and decorative cover, and our professional packaging designers can create market-oriented packaging that enhances your brand presence. We are committed to helping you establish a strong brand influence in your local market.



3. Certified for Global Compliance

This product has already obtained CE, CUPC, and ICC-ES certifications. If your target market requires additional certifications, we can assist you in obtaining the necessary approvals to ensure smooth market entry.



    FAQ



Will this repair kit fit every North American two-piece toilet?

No. Before ordering, confirm that the toilet tank requires a 3-inch flush-valve outlet, a side-mounted handle, a bottom-entry fill valve with a 15/16-14 NPSM inlet thread and sufficient internal clearance. Tank layouts can vary between toilet models.



What components are included in the kit?

The package includes an adjustable fill valve with refill tube, a 3-inch outlet single-flush valve with overflow tube and chain, a side-mounted trip lever, two stainless steel tank-to-bowl bolts and a tank-to-bowl sealing gasket.



What B2B ordering and customization options are available?

The supplied service information lists sample service, product color customization with a minimum order quantity of 3,000 pieces and customizable multilingual user manuals. The stated carton configuration is 15 pieces per 50 × 35 × 40 cm carton with a gross weight of 9 kg.



    WHY CHOOSE US?



1.Market Experience

Since 2004, we have been deeply engaged in the replacement and repair market. Our products have been tested by the market and continuously improved through multiple iterations. By choosing our products to expand your business, you can effectively avoid customer complaints.



2.Quality Guarantee

We adhere to high manufacturing standards, ensuring that every product undergoes rigorous testing for durability and compatibility. With our 3 years warranty, you can trust in the long-term reliability of our products, providing peace of mind for your business.



3.R&D Ability

We have our own product designers and packaging designers who can help you quickly develop and improve products to meet the needs of your local market. This ensures that your business gains recognition and success in your target market.



4.Customer Support

We assign a dedicated salesperson to each customer, providing market consultation in the early stages, detailed confirmation during production, and follow-up support after shipment. Our goal is to support your business at every step, ensuring a smooth and successful operation.
