How Do Push Button Toilets Work?

Push button toilets are a modern upgrade to the traditional lever-flush models. They're sleek, easy to use, and help save water — which makes them super popular in today’s bathrooms. But have you ever wondered what actually happens when you press that button? Let’s take a closer look at how push button toilets work, and what’s going on behind the scenes.

1. What Is a Push Button Toilet?

A push button toilet is exactly what it sounds like — instead of pulling a handle, you press a button to flush. The button is usually located on the top or side of the tank, and it connects to an internal flush valve that releases water when activated.

How Is It Different from Traditional Handle Toilets?

• Looks more modern and neat

• Easier to use — just a simple press

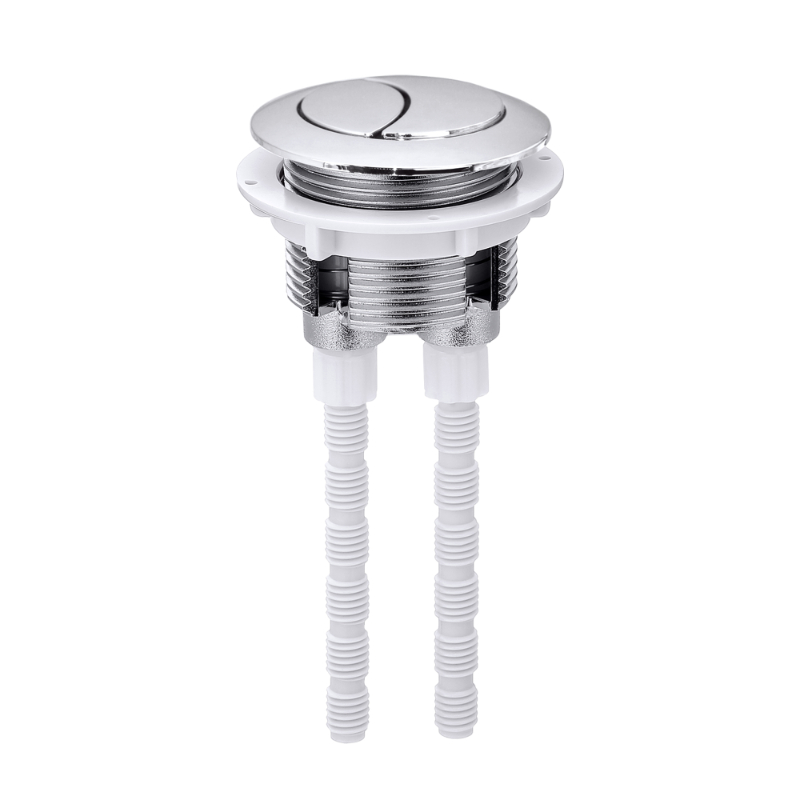

• Often comes with dual flush buttons to save water

• Works great with concealed or one-piece toilet designs

2. Common Types of Push Button Flush Mechanisms

Not all push buttons work the same way. There are actually four common types of mechanisms that connect the button to the flush valve:

Lever-Driven

When you press the button, it lifts a lever inside the tank. That lever is attached to a chain, which pulls open the flapper (or flush seal) and lets water rush into the bowl.

Rod-Press

This type uses a rod directly under the button. When pressed, the rod pushes down on the flush valve’s top button, triggering the flush.

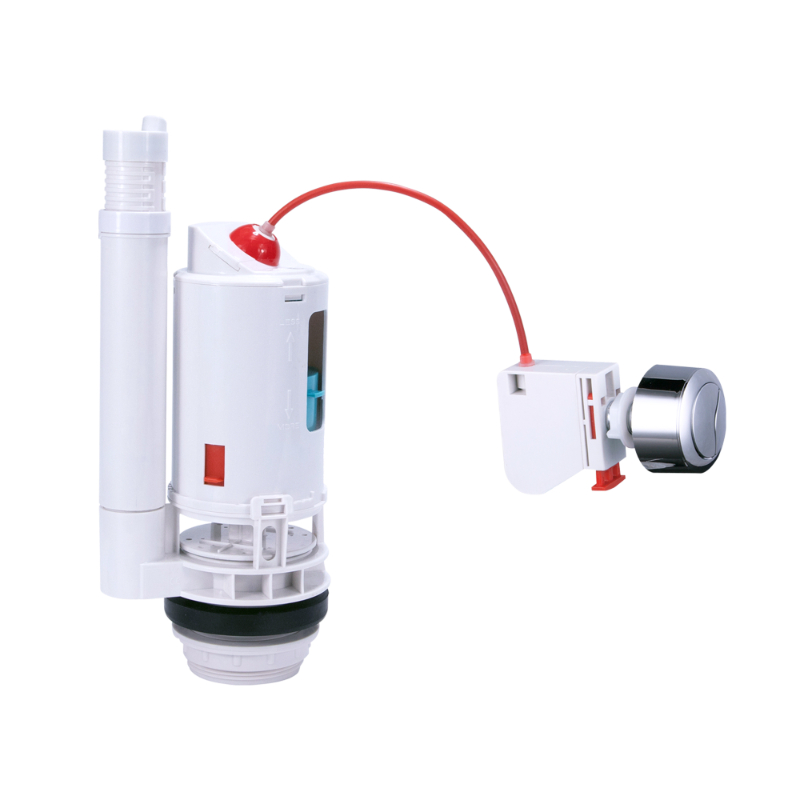

Cable-Control (Wire Pull)

This one uses a thin wire inside a plastic tube. Pressing the button pulls the cable, which opens the flush valve. It's flexible and great for side-mounted or custom installations.

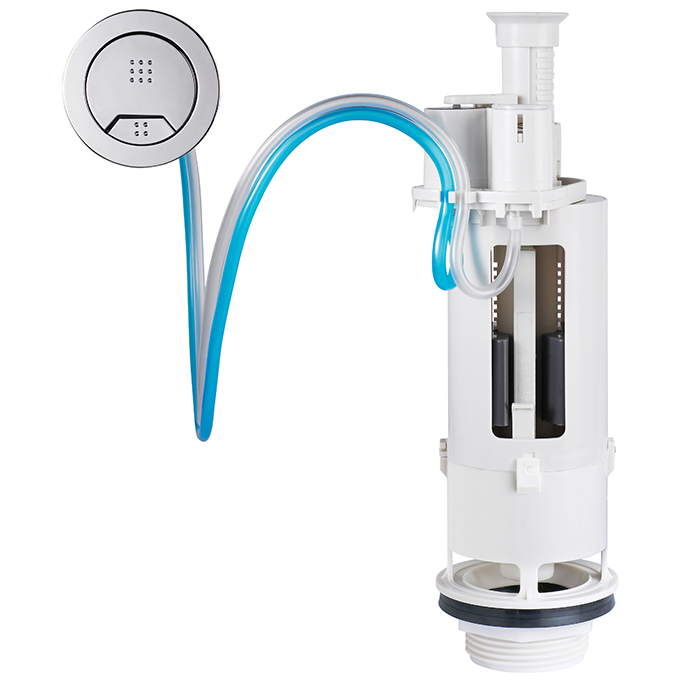

Air-Driven (Pneumatic)

Here, the button is connected to the flush valve via an air tube. When you press the button, it sends air pressure through the tube, which then opens the valve. This setup is often used in concealed tank toilets.

3. How the Flushing Process Works

Even though there are different mechanisms, the basic idea is the same. When you press the button, you're triggering the flush valve to release water from the tank into the bowl. Here's how each one works:

Lever-Driven: Button lifts the lever → lever pulls the chain → chain lifts the flapper → water rushes out

Rod-Press: Button presses down → rod hits the flush valve button → valve opens

Cable-Control: Button pulls the cable → flush valve opens

Air-Driven: Button pushes air → air activates flush valve → water flows out

After flushing, the valve closes, and the fill valve refills the tank, getting ready for the next flush.
